Every year, over 40 million tonnes of waste plastic will be discarded among the world which has produced increasingly serious effects of environmental pollution. In order to solve this problem, scientists discovered the pyrolysis technology which involves molecular breakdown of larger molecules into smaller molecules in presence of heat.

plastic pyrolysis to oil recycling plant

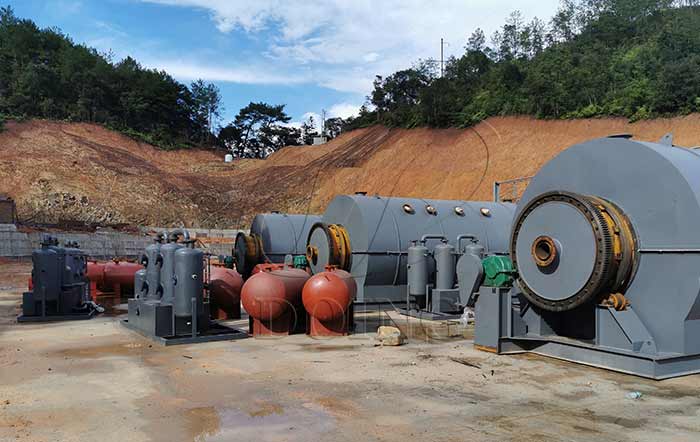

Plastic pyrolysis to oil recycling plant

According to the characters of pyrolysis technology, Doing Group have created the plastic pyrolysis to oil recycling plant to convert the waste plastic into useful fuel oil and carbon black. Doing plastic pyrolysis to oil recycling plant now have been run in many countries and get good feedback. Now let’s see how it works.

The working process of plastic pyrolysis to oil recycling plant:

plastic pyrolysis to oil recycling plant

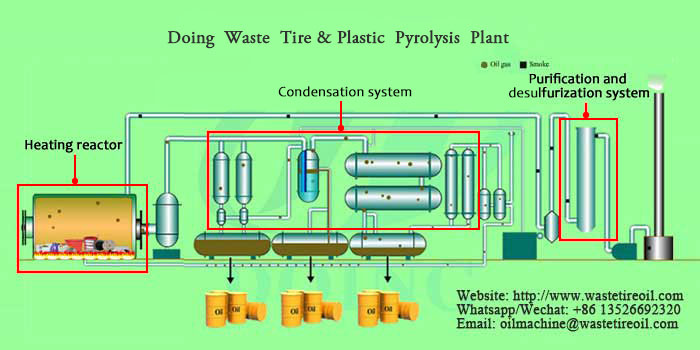

The working flowchart of plastic pyrolysis to oil recycling plant

1.Feeding

Open the reactor feeding door and load waste plastics inside. Then close the feeding door and make sure both the feeding door and slagging door closed tight.

2.Heating

Open the heating device, start heating. During this period, you need to check the temperature gauge, and record the temperature regularly.

3.Condensing

When the temperature reaches about 200℃, the oil gas will be produced. When the oil gas passes the cooling system, it will be condensed into liquid oil and flow into the oil tank.

4.Slagging

After finishing collecting all the oil gas, it’s time to shut and cool down the plastic pyrolysis to oil recycling plant. Two hours later, open the slagging door to discharge the carbon black left in the pyrolysis reactor.

Technical parameter of plastic pyrolysis to oil recycling plant:

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 25days 25days 25days
18 Weight 27T 30T 35T


The normal model of Doing plastic pyrolysis to oil recycling plant is 6t, 8t, 10t, 12t, 15t. We also offer customized service which means we can produce the plant according to your needs.

Doing plastic pyrolysis to oil recycling plant can fully pyrolyze the oil in the raw material, but the specific oil output is determined by the plastic type.Different types of plastic have different oil yield.

plastic pyrolysis to oil recycling plant

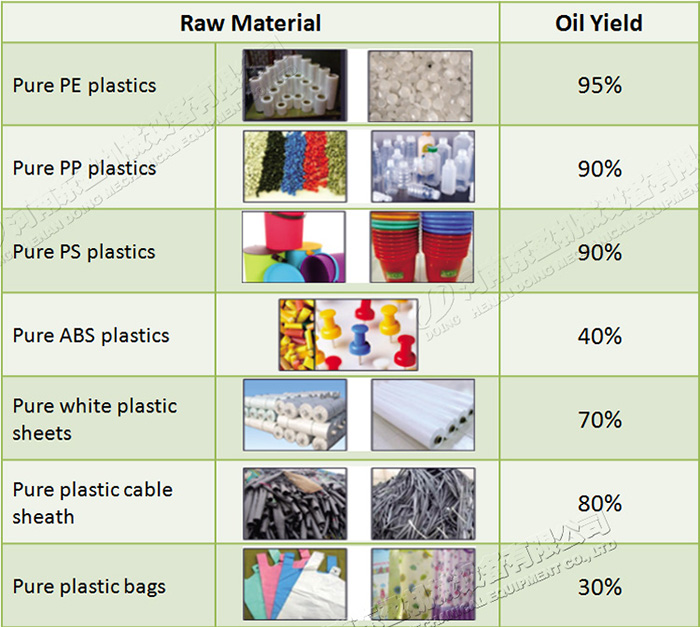

The oil yield of different types of plastic

Advantages of Doing plastic pyrolysis to oil recycling plant:

1. Safety

We not only have the basic safety devices such as oil-water separator,water seal and vacuum device, but also we use the best steel and unique round-shape reactor technology to make the plastic pyrolysis to oil recycling plant.

2. Environment protecting.

Doing palstic pyrolysis to oil recycling plant has the tail gas cleaning system which has achieve national environmental requirements.If you higher standard for pollution, we have the desulfurization dedusting system which can get zero pollution.

3. Energy saving.

During the pyrolysis process, there will produce some incondensable gas which can be recycled to heat the pyrolysis reactor.

The application of the final products produced by plastic pyrolysis to oil recycling plant:

After processing the watse plastic by plastic pyrolysis to oil recycling plant, yuo can get two profitable products: fuel oil and carbon black.

plastic pyrolysis to oil recycling plant

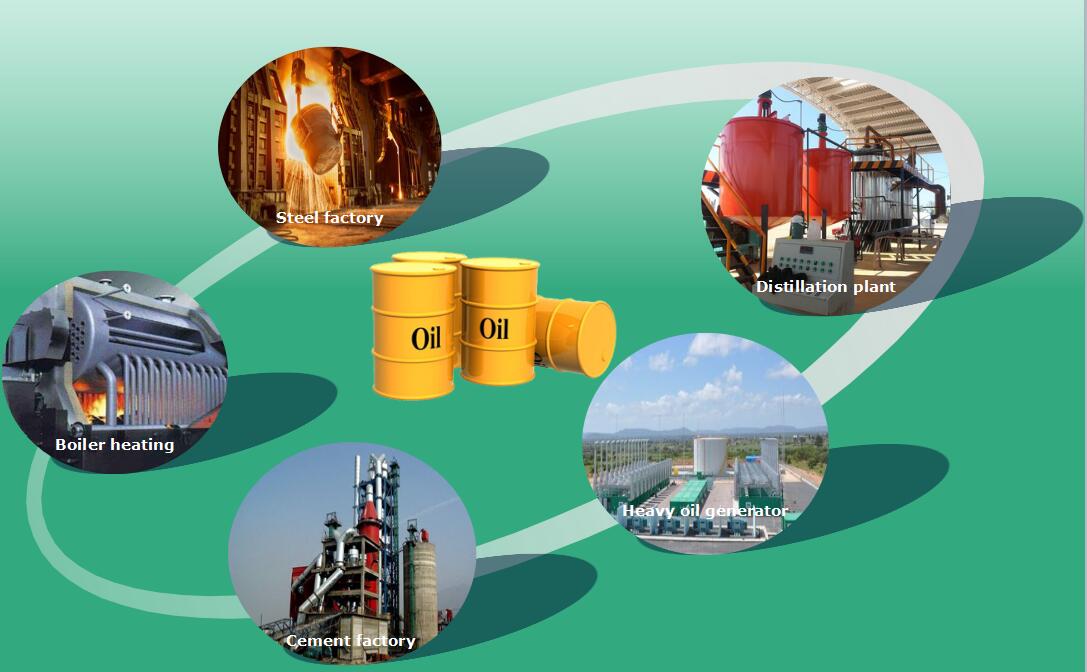

The application of fuel oil from plastic pyrolysis to oil recycling plant

Fuel oil as the main final product, it can be sold to steel factory, cement factory as heating fuel, If you want to get higher profits, you can refine it with plastic oil to diesel plant to get light diesel which can be sold in higher price.

plastic pyrolysis to oil recycling plant

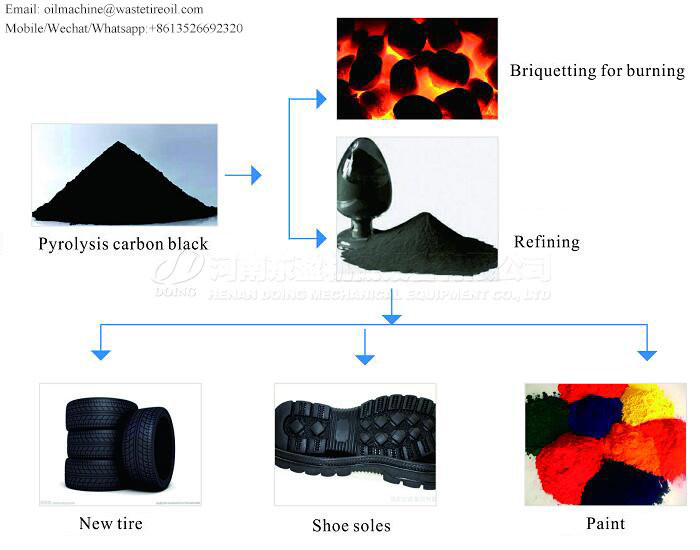

The application of carbon black from plastic pyrolysis to oil recycling plant

Carbon black can be used directly to make carbon black bricks, or after refining by the further processing machine (briquetting machine and grinding machine ) to be used for making other rubber products.

In a word, plastic pyrolysis to oil recycling plant can turn waste into treasure. If you are interested in the plastic to oil recycling plant, welcome to contact with us!
