Waste plastic to fuel oil pyrolysis plant

Safety: adopts round-shape reactor head and three-step wilding process High oil yield: using three steps cooling system to get fully cooling effect

Chat Online Leave A Message
Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere.

waste plasticsWaste plastic harm to animals

Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection.

plastic pyrolysis plantWaste plastic pollution

Waste plastic to fuel oil plant has supplied a new solution on disposal of waste plastic. So is this new waste plastics processing solution easy to implement? Henan Doing Mechanical Equipment Co., Ltd's waste plastic to fuel oil plant is very user-friendly and easy to operate. The specific plastic to oil process is as follows:

 The workflow of waste plastic to fuel oil pyrolysis plant

1.Feeding: Send waste plastic into the pyrolysis reactor and heat the pyrolysis reactor with fuel;

2.Heating: When the pyrolysis reactor is heated to a certain temperature, oil gas will be generated, then the oil gas goes through cooling system to be cooled down to oil and enters the oil tank.

3.Tail gas recycling: During the condensation process, part of the uncondensable but combustible gas can be recycled to heat the pyrolysis reactor after being treated by the tail gas cleaning system;

4.Smoke treating: The smoke generated by fuel burning can be discharged after being treated by the smoke cleaning system without causing secondary pollution to the environment;

5.Carbon black collecting: After the pyrolysis reaction, the carbon black in the pyrolysis reactor can be collected by the screw conveyor;

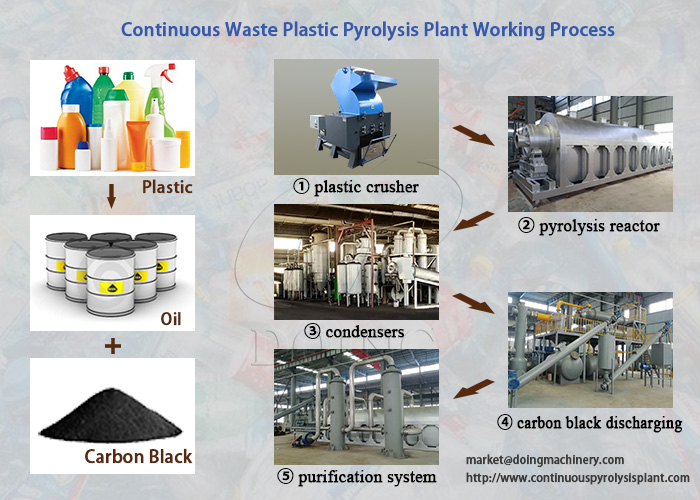

waste plastic pyrolysis plantWorkflow of waste plastic pyrolysis plant

 Technical parameter of waste plastic to fuel oil plant

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste plastic to fuel oil plant

No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60? /month
7 Total power 19kw
8 Land area 35m*15m

Final product and application of waste plastic to fuel oil plant

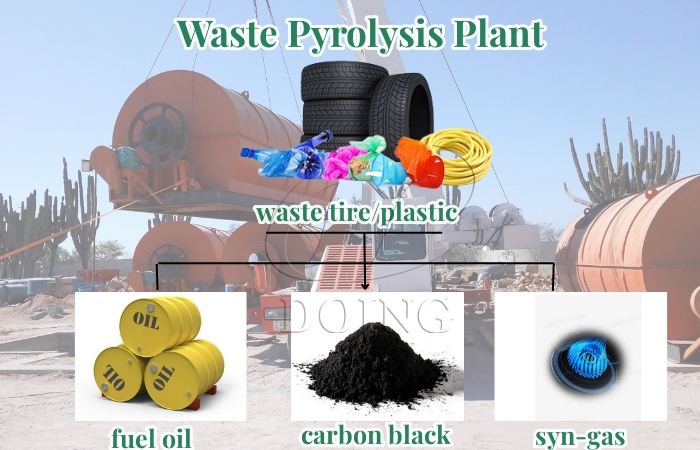

After processed by waste plastic to fuel oil plant, you can get fuel oil and carbon black. The following are the application of products from waste plastic to fuel oil plant.

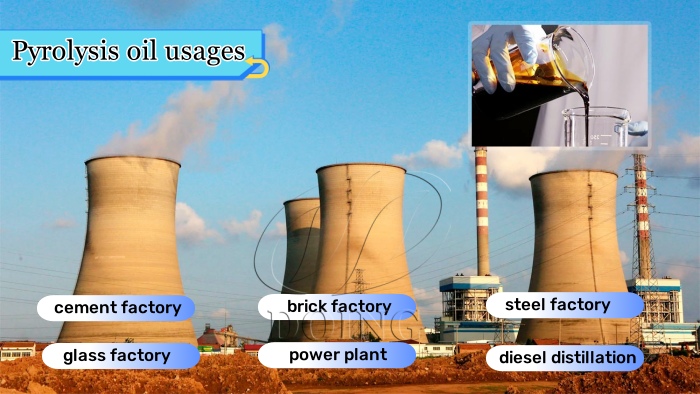

plastic pyrolysis plant Fuel oil application

Fuel oil: The main product - fuel oil produced by waste plastic to fuel oil plant is widely used for industrial and commercial purposes.With the heating value 10592.48 Lcal/Kg,this fuel oil is a kind of good heating fuel which can be applied for boiler factory,cement factory,glass factory and steel mill,ect. Besides, fuel oil can be refined by waste oil distillation machine into diesel, which can be used as alternative diesel in diesel burners, generators, heavy machinery and agricultural machiery, etc.

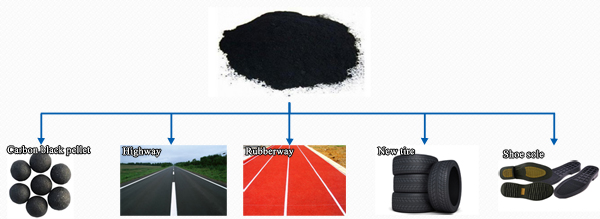

carbon black application Carbon black application

Carbon black: It can be  used as raw material or main ingredient in many industries and the chemical structure of carbon black strengthens,lengthens the endurance,and improves the coloring features of the materials.It is more price-efficient to be used as an ingredient listed.

waste plastic pyrolysis plant Waste plastic to fuel oil plant project cases

So far, Doing Group waste plastic to fuel oil plant has successfully installed and operated in more than 90 countries around the world, our pyrolysis plant can process not only waste plastic, but also waste tires, the capacity is between 100KG and 50T. If you want to know more information about waste plastic pyrolysis plant or waste tire pyrolysis plant, welcome to consult us feel free.

Waste Plastic Pyrolysis Plant Flow Chart

Converting Plastic Oil to Diesel Flow Chart
