Waste Plastic Oil to Diesel Plant

Vertical design with automatical slagging system and direct heating with fast heating system

Chat Online Leave A Message

The waste plastic oil to diesel plant is one of our main products which can refine the plastic oil into diesel through vacuum distillation system. The normal capacity of the waste plastic oil to diesel plant is 5T, 10T, 15T, 20T. Of course, this is just an option, not necessary, if you have special needs, our engineer can also help you design the waste plastic oil to diesel plant according to your capacity and requirements.

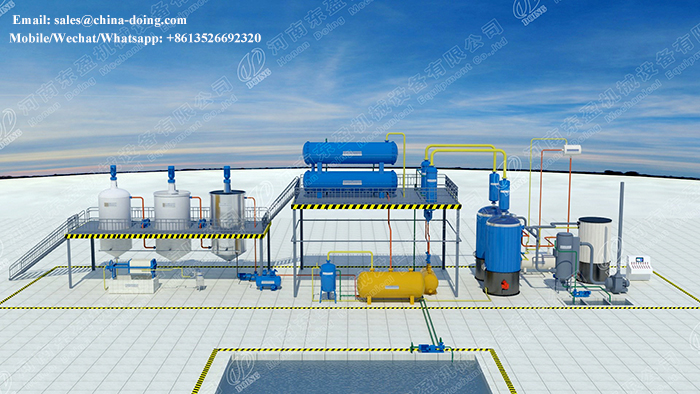

waste plastic oil to diesel3D rendering of waste plastic oil to diesel plant

Here is the working process of the waste plastic oil to diesel plant:

1.Pumping waste plastic oil into distillation reactor.

2.Heating the reactor by conduction oil, and the liquid waste plastic oil will slowly become oil gas.

3.Cooling the oil gas by condense pipe and then it will be filtered by sold catalytic chamber, then diesel will be cooled out first by controlling the temperature over 150℃.

4.Collecting the final products-diesel and asphalt.

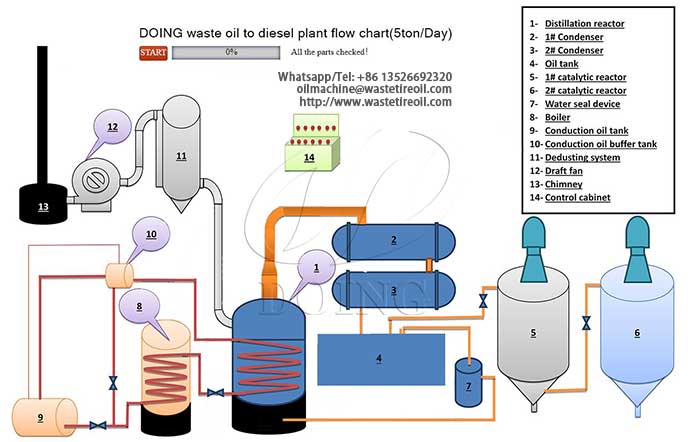

waste plastic oil to diesel plantThe flow chart of waste plastic oil to diesel plant

Technical Parameters of waste plastic oil to diesel plant:

Items Contents
capacity DY-5T, DY-10T, DY-15T, DY-20T
Raw material Plastic/tire pyrolysis oil, waste engine oil
Structural form Vertical
outputs Diesel, asphalt
Diesel yield 80%-85%
Operating pressure Normal
Material of reactor 4 different materials of reactor
Thickness of reactor 16mm
Safety standard Pressure vessel standard
Total power 24.5kw
Mode of cooling Recycled water cooling
Required water 40m³for recycle use
Heating method Conduction oil and fuel heating
Discharge way automatically
Noise DB(A) ≤85
Running system Semi-continuous
Delivery time 25days
weight 20-50T(depends on the capacity)

Main advantages of our waste plastic oil to diesel plant:

1. Vertical design: which can make the distillation reactor more efficient and discharge the residues automatically.

2. Coil heater with conduction oil heating method:

Coil heater can make heating evenly and fast, and it can keep processing 3 batches oil in 2 days without stop;

3.Conduction oil is for recycle use, which can save a lot of heating fuel.

4.Five purifying process ensure final diesel pure and high quality.

Final product and application of waste plastic to fuel oil plant:

After refined by the waste plastic to oil plant, there are two final products you can get diesel and asphalt.

waste plastic oil to diesel plantThe common use of diesel

For diesel, it can be used for heavy machinery such as ships and trucks, generators and boiler.

Then for asphalt can be used for paving or refinery in asphalt plant.

As an experienced waste plastic oil to diesel plant manufacturer, We Henan Doing Company has successfully installed many waste oil to diesel plant projects in more than 80 countries and regions around the world, such as Italy, Macedonia, Iran, Egypt, Mexico, Ecuador, Haiti, Congo, Uganda, Nigeria, India, Pakistan, Thailand, Malaysia, Bangladesh, Guatemala and so on. The following is the photo of parts of waste oil to diesel plant projects that we installed.

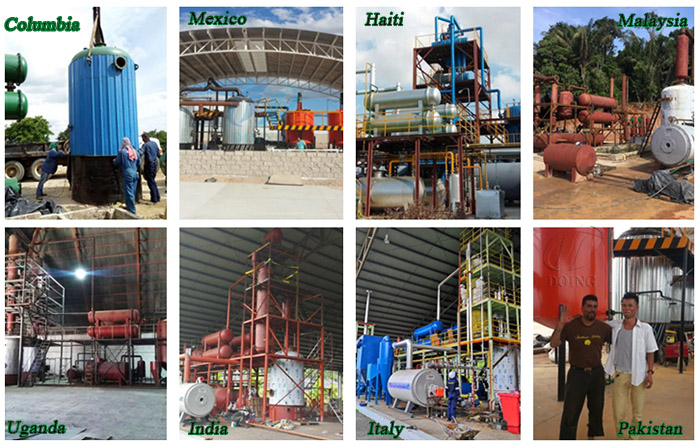

waste plastic oil to diesel plantThe project cases of waste plastic oil to diesel plant in many countries

Except for waste plastic oil to diesel plant, we also offer waste plastic to fuel oil plant. If you are interested in waste plastic oil to diesel plant or waste plastic to fuel oil plant, please contact us freely, our engineer will provide the most suitable solutions for you.
