Generally speaking, waste oil distillation machine can refine plastic pyrolysis oil, tire pyrolysis oil, waste crude oil, waste engine oil, waste lubricating oil, black heavy oil, etc. into diesel through high temperature distillation, circulating water condensation, catalyst deodorization and white clay decolorization, and the diesel oil yield can reach 85%. The specific working process of Doing Group waste oil distillation machine is as follows:

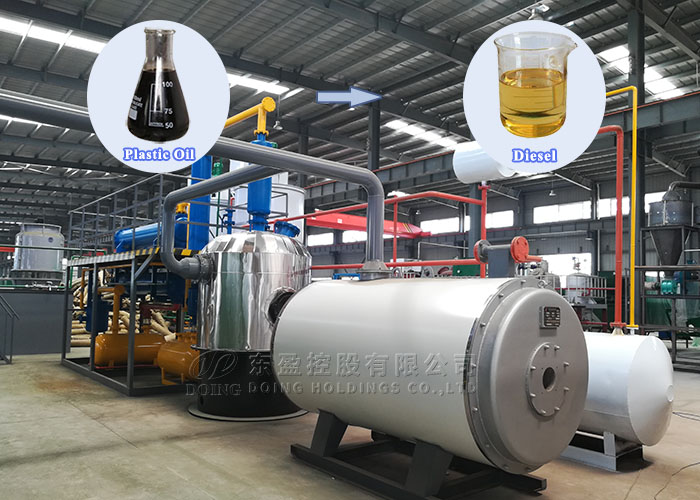

Waste oil distillation machine
The working process of waste oil distillation machine:
1. Sent waste oil to the distillation reactor through the oil pump, and heat the heat conduction oil to preheat the system;
2. When the temperature of the distillation reactor reaches 290 degrees, turn on the burner to heat the distillation reactor. The simultaneous heating of the burner and the heat conduction oil can speed up the distillation time and save fuel;
3. When the temperature of the distillation reactor is between 380°C and 400°C, oil gas will be generated, and the oil gas enters the horizontal condenser and be cooled into primary diesel and enter the oil tank;
4. The color of primary diesel is darker and the smell is relatively unpleasant. Use catalyst and clay to deodorize and decolor primary diesel to obtain bright-colored non-standard diesel;
5. The uncondensable but combustible tail gas in the condensation process can be collected to heat the distillation reactor after being processed by the tail gas cleaning system; The smoke generated during the fuel combustion process can meet the national gas emission standards after being processed by smoek cleaning system;
Doing Group waste oil distillation machine is equipped with diesel further purification system, which can obtain pale yellow diesel products to meet the production needs of different customers.

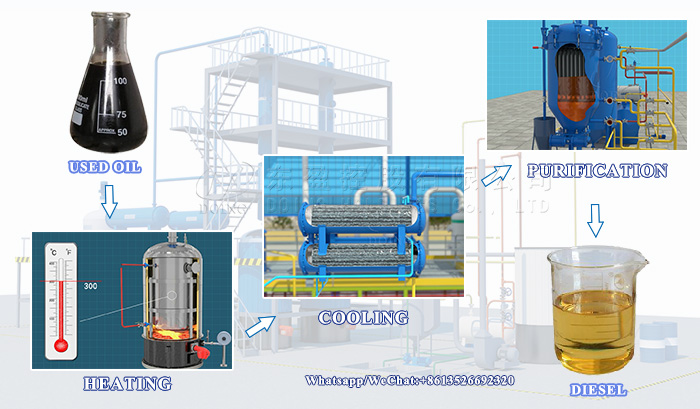

Working process of waste oil distillation machine
If you have other raw materials that you want to process with waste oil distillation machine, please feel free to consult us, our engineers can provide you with suitable solutions.
